C# -- 정렬가능한 양방항 binding DataGridView 만들기 (SortableBindingList 와 INotifyPropertyChanged 이용)

C# -- 정렬가능한 양방항 binding DataGridView 만들기

        (SortableBindingList 와 INotifyPropertyChanged 이용)

참고 :  http://martinwilley.com/net/code/forms/sortablebindinglist.html   ==> SortableBindingList 출처.

         https://docs.microsoft.com/ko-kr/dotnet/api/system.componentmodel.inotifypropertychanged?view=netframework-4.8



        https://scottlilly.com/learn-c-by-building-a-simple-rpg-index/lesson-20-3-binding-list-properties-to-datagridviews/

** DataGridView 의 DataSource 로 BindingList 사용시에는 정렬기능 없다.

   --> 이 문제를 해결한게 SortableBindingList 이다.

        ; BindingList 대신에 SrotableBindingList 사용하면 됨.

** DataGridView 에 연결한 DataSource 의 객체들 내부 속성에 변경사항이 생기면,

    이를 즉시 DataGridView 화면에 반영하기위해서는, INotifyPropertyChanged 를 구현해야함.

   --> DataGridView 화면에서 수정한 경우에도, 해당 원본 객체의 속성에 잘 반영됨.

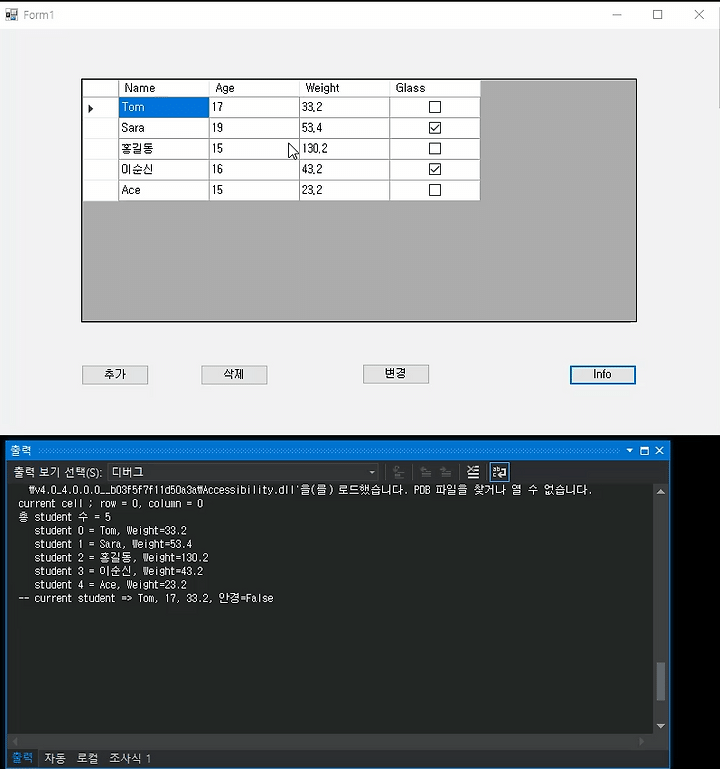

< 실행 화면 >

< 소스코드>

--

	using System;
	using System.Collections.Generic;
	using System.ComponentModel;
	using System.Data;
	using System.Diagnostics;
	using System.Drawing;
	using System.Linq;
	using System.Runtime.CompilerServices;
	using System.Text;
	using System.Threading.Tasks;
	using System.Windows.Forms;
	namespace INotifyPropertyChanged_SortableBindingList_test
	{
	public partial class Form1 : Form
	{
	List<Student> studentList = new List<Student>();
	private BindingSource studentBindingSource = new BindingSource();
	private SortableBindingList<Student> studentBindingList;
	public Form1()
	{
	InitializeComponent();
	studentList.Add(new Student("Tom", 17, 33.2, false));
	studentList.Add(new Student("Sara", 19, 53.4, true));
	studentList.Add(new Student("홍길동", 15, 130.2, false));
	studentList.Add(new Student("이순신", 16, 43.2, true));
	studentList.Add(new Student("Ace", 15, 23.2, false));
	studentBindingList = new SortableBindingList<Student>(studentList);
	studentBindingSource.DataSource = studentBindingList;
	this.dataGridView1.DataSource = studentBindingSource;
	}
	private void Form1_Load(object sender, EventArgs e)
	{
	}
	// 추가 버튼 click
	private void button1_Click(object sender, EventArgs e)
	{
	studentBindingList.Add(new Student("유관순", 17, 45, false));
	}
	// 삭제 버튼 click
	private void button2_Click(object sender, EventArgs e)
	{
	int rowIndex = this.dataGridView1.CurrentCell.RowIndex;
	int columnIndex = this.dataGridView1.CurrentCell.ColumnIndex;
	Debug.WriteLine($" 삭제될 cell ; row = {rowIndex}, column = {columnIndex}");
	DataGridViewRow row = this.dataGridView1.Rows[rowIndex];
	Student currentStudent = row.DataBoundItem as Student;
	Debug.WriteLine($"-- 삭제될 student = Name={currentStudent.Name}, Weight={currentStudent.Weight}, 안경={currentStudent.Glass}");
	this.dataGridView1.Rows.RemoveAt(rowIndex);
	}
	// Info 버튼 click
	private void button3_Click(object sender, EventArgs e)
	{
	int rowIndex = this.dataGridView1.CurrentCell.RowIndex;
	int columnIndex = this.dataGridView1.CurrentCell.ColumnIndex;
	Debug.WriteLine($"current cell ; row = {rowIndex}, column = {columnIndex}");
	//DataGridViewRow row = this.dataGridView1.SelectedRows[0];
	DataGridViewRow row = this.dataGridView1.Rows[rowIndex];
	Student currentStudent = row.DataBoundItem as Student;
	if(currentStudent != null)
	{
	Debug.WriteLine($"총 student 수 = {this.studentBindingList.Count}");
	for(int i=0; i<this.studentBindingList.Count; i++)
	{
	Debug.WriteLine($" student {i} = {this.studentBindingList[i].Name}, Weight={this.studentBindingList[i].Weight}");
	}
	Debug.WriteLine($"-- current student => {currentStudent.Name}, {currentStudent.Age}, {currentStudent.Weight}, 안경={currentStudent.Glass}");
	}
	}
	// 변경 버튼 click
	private void button4_Click(object sender, EventArgs e)
	{
	if(this.studentBindingList.Count > 0)
	{
	Student student = this.studentBindingList[0];
	student.Weight += 1;
	}
	}
	}
	public class Student : INotifyPropertyChanged
	{
	private double _weight;
	public string Name { get; set; }
	public int Age { get; set; }
	public double Weight
	{
	get
	{
	return _weight;
	}
	set
	{
	if (value != this._weight)
	{
	this._weight = value;
	NotifyPropertyChanged();
	}
	}
	}
	public bool Glass { get; set; } = false; // 안경끼면, true
	public event PropertyChangedEventHandler PropertyChanged;
	public Student(string name, int age, double weight, bool glass)
	{
	this.Name = name;
	this.Age = age;
	this.Weight = weight;
	this.Glass = glass;
	}
	private void NotifyPropertyChanged([CallerMemberName] String propertyName = "")
	{
	PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
	}
	}
	public class SortableBindingList<T> : BindingList<T> where T : class
	{
	private bool _isSorted;
	private ListSortDirection _sortDirection = ListSortDirection.Ascending;
	private PropertyDescriptor _sortProperty;
	public SortableBindingList()
	{
	}
	public SortableBindingList(IList<T> list)
	: base(list)
	{
	}
	// Gets a value indicating whether the list supports sorting.
	protected override bool SupportsSortingCore
	{
	get { return true; }
	}
	// Gets a value indicating whether the list is sorted.
	protected override bool IsSortedCore
	{
	get { return _isSorted; }
	}
	// Gets the direction the list is sorted.
	protected override ListSortDirection SortDirectionCore
	{
	get { return _sortDirection; }
	}
	// Gets the property descriptor that is used for sorting the list if sorting is implemented in a derived class; otherwise, returns null
	protected override PropertyDescriptor SortPropertyCore
	{
	get { return _sortProperty; }
	}
	// Removes any sort applied with ApplySortCore if sorting is implemented
	protected override void RemoveSortCore()
	{
	_sortDirection = ListSortDirection.Ascending;
	_sortProperty = null;
	_isSorted = false; //thanks Luca
	}
	// Sorts the items if overridden in a derived class
	protected override void ApplySortCore(PropertyDescriptor prop, ListSortDirection direction)
	{
	_sortProperty = prop;
	_sortDirection = direction;
	List<T> list = Items as List<T>;
	if (list == null) return;
	list.Sort(Compare);
	_isSorted = true;
	//fire an event that the list has been changed.
	OnListChanged(new ListChangedEventArgs(ListChangedType.Reset, -1));
	}
	private int Compare(T lhs, T rhs)
	{
	var result = OnComparison(lhs, rhs);
	//invert if descending
	if (_sortDirection == ListSortDirection.Descending)
	result = -result;
	return result;
	}
	private int OnComparison(T lhs, T rhs)
	{
	object lhsValue = lhs == null ? null : _sortProperty.GetValue(lhs);
	object rhsValue = rhs == null ? null : _sortProperty.GetValue(rhs);
	if (lhsValue == null)
	{
	return (rhsValue == null) ? 0 : -1; //nulls are equal
	}
	if (rhsValue == null)
	{
	return 1; //first has value, second doesn't
	}
	if (lhsValue is IComparable)
	{
	return ((IComparable)lhsValue).CompareTo(rhsValue);
	}
	if (lhsValue.Equals(rhsValue))
	{
	return 0; //both are the same
	}
	//not comparable, compare ToString
	return lhsValue.ToString().CompareTo(rhsValue.ToString());
	}
	}
	}

view raw INotifyPropertyChanged_SortableBindingList_test.cs hosted with ❤ by GitHub
